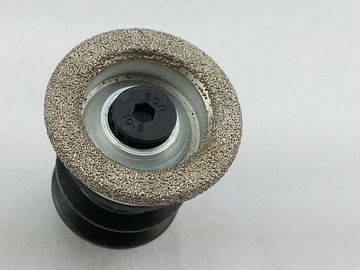

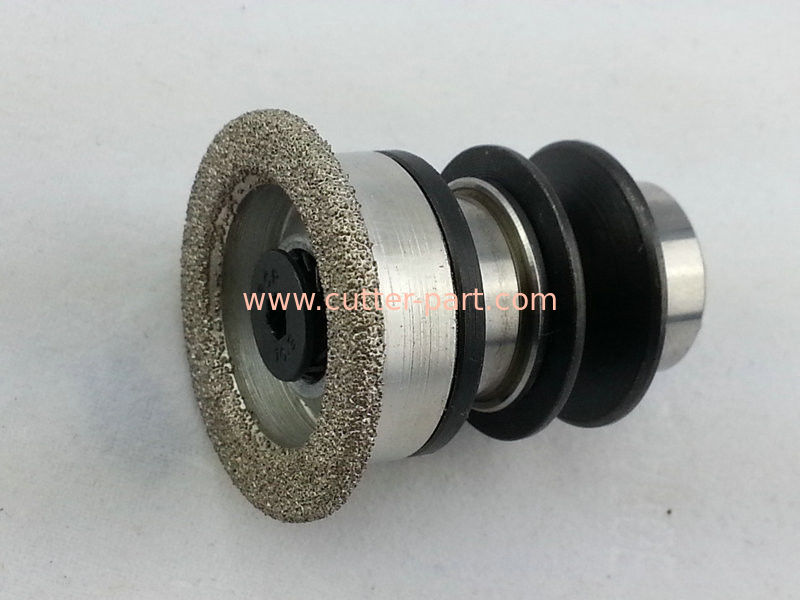

Grinding Wheel Assembly For Gerber Cutter Parts

Grinding Wheel Assembly For Gerber Cutter Parts

QUICK DETAILS:

TYPE: MECHANICAL PARTS

PART NO: 89310000

APPLY TO:  GERBER GT1000, GERBER CUTTER,CUTTING, PARTS,GGT, SHPNRPRSSRFOOT ASSY,HEAD,GT

Description:

We are professionally supplying spare parts for plotter, spreader and cutter machine, used for Gerber, Lectra, Yin, Bullmer, Investronica, Kuris and so on. We have rich experience in parts design and production. Advanced production technology and detection ability can ensure the high-qualified products and fast delivery capability. At the same time, we also agent some other related products to meet customer needs.

Competitive advantage:

     We provide high quality parts, to ensure customer receive perfect products

1. We have lower price in the same line,this advantage help customer more effective cost down
2. To make the products improving better and better from our constantly Innovation meanwhile we can design and make to order as customer request
3.  we have high efficiency, can arrange the shipment in 24 hours after receiving the payment.VIA DHL,FEDEX,UPS express.
4. We in charge of replacement if have transportation or irresistible accident damages,also provide technical support

Our parts application as below machine model:

• ,INFINITY；INFINITY-II；INFINITY-AE2；AP100；AP100-PR；AP300,AP320；AP700；GTXL；S5200/GT5250；S7200/GT7250；XLC7000；SY51；SY100；SY101；XLS50……；
• Alys 20/30/60/120,MH8/MX/MX9,VT5000/7000……;PROCUT 800X/750X/500X,
• TURBOCUT S2501;HY-H1703/H1705/H1707,HY-H2005/H2007/H2305/H2307, HY-H2011……;

GT1000/GTXL PARTS LIST

Parts	Description	Pictures	Parts	Description	Pictures
85971000	SLIDER/CONNECTOR  ARM ASSY		85878000	Knife blade  for GTXL
85963000	SWIVEL,ROBBIN,GTXL		85904000	WHEEL,GRINDING, 80GRT,1.365ODX.625ID, GTXL
85964000	SLIDER		85948000	PULLEY, DRIVE
85637000	CONNECTOR ARM ASSY		85632000	PULLEY,IDLER, ASSY,SHARP
85838000	GUIDE ROLLER SIDE		85630002   85630001   85872001	YOKE, ASSEMBLY, GTXL
85839000	GUIDE,ROLLER,REAR,GTXL		85616000	CLEVIS ASSEMBLY PX
71575001	SHAFT,CARB.,GUIDE,KNIFE, UPPER,SMALL,S32		85844000	SHAFT GUIDE  PRESSER FOOT
85635000	GUIDE,ASSY,KNIFE,GTXL		85937000	BUSHING FD L8-NS (LM76) NO BORE DBL LNG
85849000	PULLEY,SHAFT, ONE PIECE,GTXL		85947000	KNIFE GUIDE SHARPENER
85850000	SPACER GRIND WHEEL		85949000	PINION, SHAFT
85631001	GRINDING WHEEL ASSY PX		85917052	MOTOR ASSEMBLY  X2 W/BOX
153500568	BRG FLNG  S9912YMD0613FS2  STOCK DRIVE		85917051	MOTOR ASSEMBLY  X2 W/BOX
496500222	O-RING,PARKER,#2-225, WHEEL,GRINDING,GTXL		86006050	C-axis motor assy
925500608	JOYSTICK EAO #44-800.4		88226000    86006001	Drill #1 motor assy
85939001	CRANKSHAFT ASSEMBLY PX		86467002	MOTOR, ASSEMBLY,  KNIFE, CAM, PACKAGED
85932001   85932002	CRANKSHAFT,  3/4" STROKE, GTXL		632500282	GEARBOX,10:1,GAM
85979000	SHOE,CLUTCH,GTXL		632500283	GEARBOX,5:1,GAM  EPL-W-064-005G-[080-A01]-S030
85626000	CLUTCH SHARP. ASSY		79725001	PCA,S32,ISOLATOR, SIGNAL,#KBSI-6,DRILL
896500325	SPRING EXTENSION LEE  #LE-031D-7 PLTD MW		128500101	DRV BRUSHLESS AMP.  AMC#B25A20P
85628000	SHARPENER & PRESSER  FOOT ASSY GTXL		85623000	PUSHER, CAP, ROD,  ASSEMBLY, GTXL
85629001	SHARPENER,ASSY,GTXL		92910001	Black Poly bristle  4” X 4” round foot
85634000	PRESSER FOOT  ASSEMBLY PX		92910002	BRISTLE 1.6" POLY -  ROUND FOOT - WHITE
85891000	PLATE,PRESSER  FOOT BOWL,PX		925500528	KEYPAD, TECH#70120203,  BLK, BEAM, S32/52/72
88903000	HOUSING,SHARPENER, GTXL		91557000	ASSY, LASER ORIGIN LIGHT
85877001	BOWL, PRESSER  FOOT MACH PX		180500264	DRIVE BELT,  PAXTON # 8001458 ,  VAC, GTXL
66974000	CAMROL BEARING		85929001   85640000	UP/DOWN CYLINDER ASSY
85698000	BRG ECCENTRIC  CAMROL WITH SLOT		85624000	PNEUMATIC ASSY, PRESSER FT,PX,GTXL
153500511	BEARING, THOMSON  #SUPER-8-OPN		85858000	BUSHING,ECCENTRIC, KN GD
153500557	BRG THOMSON SUPER  SMART#SSE-M20-0PN-WW		88186000   85901000	ENDCAP,ROLL  FORMED SLAT,GTXL
85860001	BELT,TIMING, Y-AXIS,PX,GTXL		460500126	PUROLATOR H1-E 40  FILTER #HE40-4501
85867000	BELT BRECOFLEX TIMING		238500035	BRUSH, ENPROTECH # L00286-1D-31 (V5 MTR)
85882001     85882000	PULLEY DRIVEN AT5  Y-AXIS		238500036	BRUSH, ENPROTECH # L00287-1C-31 (V7 MTR)
85740002  85740003	PULLEY DRIVEN  X-AXIS		85745000	X-AXIS IDLER  PULLEY ASSY
